AL2803 plane oil loading arm:
|
Nominal diameter of plane oil loading arm is DN80 and DN65, connected by several pipelines’ rotating joint, accompanying the connection of balance equipment with plane oil pick up tube. Needing one person operates, so it is convenient and easy. |
|

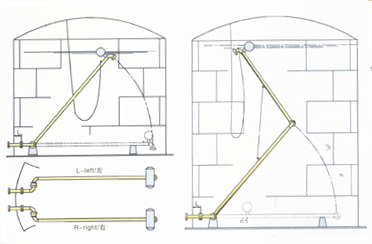

AL2105/AL2205 inner-tank floating oil outflow arm
The equipment is fixed in the tank internal, pitching along with the movement of liquid level inside the tank and keeping the floating export on the highest of liquid level.
During inquiry and order , confirming the following technical parameters.
1. nominal diameter of floating oil outflow arm
2. material
3. tank dimension and blueprint
4. medium name
5. connecting flange standard |

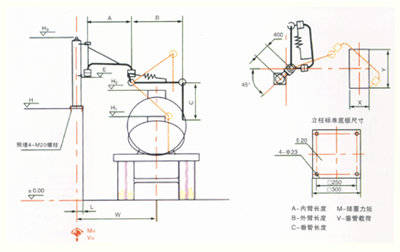

working envelope diagram of top loading arm
 |
Clients provide the parameters
1、 |
Platform height |
H |
mm |
2、 |
distance between the middle column and the edge of platform |
L |
mm |
3、 |
center distance between the middle column and platform |
W |
mm |
4、 |
Minimum height of the mouth of tanker |
H1 |
mm |
5、 |
Minimum diameter of the mouth of tanker |
D1 |
mm |
6、 |
Maximum height of the mouth of tanke |
H2 |
mm |
7、 |
Maximum diameter of the mouth of tanker |
D2 |
mm |
8、 |
manubrium length |
C |
mm |
9、 |
Docking area |
X/Y |
mm/mm |
10、 |
Type |
|
|
11、 |
Diamete |
|
|
12、 |
Pipe Material |
|
|
13、 |
rotating direction |
|
|
14、 |
flange entrance standard |
|
|
15、 |
Medium name |
|
|
16、 |
Medium temperature |
|
|
17、 |
Medium pressure |
|
|
18、 |
Medium viscosity |
|
|
19、 |
Column |
|
Match/ Not match |
20、 |
Base |
|
Standard base |
21、 |
Coating color |
|
|
| |
Optional attachment: |
|
|
1、 |
Liquid level Control |
|
|
2、 |
Sealing cap |
|
|
3、 |
Operating platform |
|
|
4、 |
autostairs |
|
|
|
|

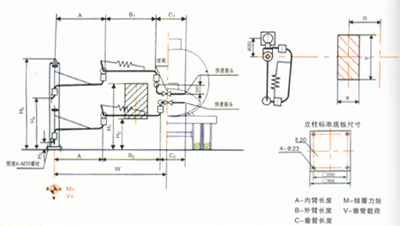

working envelope diagram of bottom loading arm
 |
clients provide parameters
1. |
center distance between middle column and platform |
W |
mm |
2. |
maximum height of tanker interface |
H1 |
mm |
3. |
minimum height of tanker interface |
H2 |
mm |
4. |
docking scope |
X/Y |
mm/mm |
5. |
distance between interface and middle tanker |
R |
|
6. |
Type |
|
|
7. |
Interface |
|
|
8. |
rotating direction |
|
|
9. |
truck receiving flange standard |
|
|
10. |
pipe receiving flange standard |
|
|
11. |
medium name |
|
|
12. |
Medium temperature |
|
|
13. |
Medium pressur |
|
|
14. |
Medium viscosity |
|
|
15. |
Pipeline material |
|
|
16. |
Temperature of medium |
Match/ Not match |
|
17. |
Base |
Standard base |
|
18. |
Coating color |
|
|
| |
Optional attachment: |
|
|
1、 |
Valve |
|
|
2、 |
Quick joint |
|
|
3、 |
Emergency release |
|
|
|
|

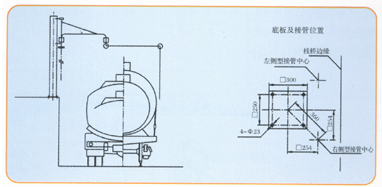

Installation of loading and unloading arm
The process of installation:
Move the loading and unloading arm to surface of trestle, use 4 M20 of bolts to fix the backplane of column on the predetermined positionof of the trestle, connect the tubing from reserved joint of the main pipeline with loading and unloading arm, install the attchment, debug the machine. |
|
| |
|
|
Option of loading and unloading arm
Optional of form:
loading and unloading of common liquid medium of low volatile, non-hazardous, it could use open type.
Laoding and unloading liquid medium which has volatible and a certain value of recovery, it could use closed type of gas loop.
Loading and unloading liquid medium which is easy to burn and explode and bad to people’s health, it could use closed type of gas loop with sealing cap.
Liquid medium which is poor mobility and needing to keep the temperature could use hot casing with heat tracing type.
Optional of attachments and parts:
In the range of operation and needed to be locked in a location, outer arm of loading and unloading arm could install locking rod.
Liquid medium which is easy to burn, explode and produce electrostatic needs to install electrostatic system and insulation flange.
Liquid medium which is easy to pruduce electrostatic could use automatic flexing bushing with shunt cap.
After finishing the loading and unloading , in order to keep residue, we could install a stop valves deadlin valve in the appropriate position.
Optional of left and right side type:
According to field conditions, to choice left side type or right side type of loadin and unloading arm for convenient.
Staff facing to tanker, if he or she is left-hander, he or she could choice to left side type of loading and unloading arm.
Staff facing to tanker, if he or she is right-hand, he or she could choice to right side type of loading and unloading arm.
|
|
|
|
|
|
