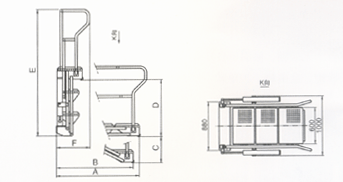

Autostairs
autostairs is convenient for operation staff to loading and unloading from trestle to the top of tanker.
|
 |
Main Features:
Having device of neutral equilibrium, it could hover in any angle.
Choicing the suitable length of folding ladder, it could satisfy different types of vehicles.
Activity time could always keep in a level state in any position.
Mat of anti-collision and buffer is installed on the contacted place between time and tanker.
Compact in structure: it accounts for a small space when folded.
large bearing capacity: the largest bearing capacity could reach to 200kg.
Simple installation: only 4 M16 blots are needed to fix it. |
|
 |

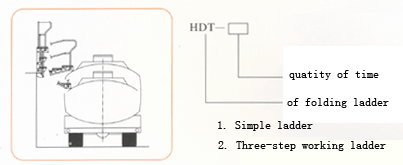

Type |
Quatity of time |
Length（mm） |
Channel width（mm） |
weight（kg） |
HDT—3 |
3 |
1400 |
600 |
145 |
HDT—4 |
4 |
1750 |
600 |
160 |
HDT—5 |
5 |
2100 |
600 |
180 |
|
|
Steel trestle:

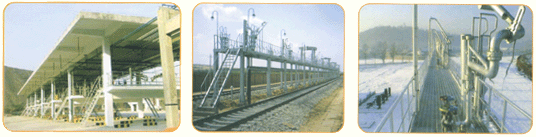

Steel structure trestle:
Assembled steel structure trestle is a integrated working platform which has fixed loading and unloading equipment and pipeline used by the liquild medium of truck and train, providing staff for convenient when operatering.
Mainly inclusion:
Truck loading and unloading:
single column truck trestle
Through-type truck trestle
Bilateral working truck trestle
Train loading and unloading:
unilateral working train trestle
Bilateral working train trestle
Model Description
intended use ZQ—truck ZH---train
Structural character and usage
T—through-type trestle working
D—trestle unilateral working
S—trestle bilateral working
Have Canopy or not and its mode 1—have no canopy 2—half of canopy 3—the whole canopy
parameters of character:
truck: show by the number of vehicles which works in one direction at the same time.
Train: show by units of composed of trestle(6m per unit)
Example:
Truck uses single column trestle, have no canopy and single trestle of unilateral working ZQD1-1.
Train uses bilateral working trestle, have the whole canopy and 20 units(120m) ZHS3-20.
|
 |
|
|
Main designed Parameters of Steel structure trestle:
Size of structrue: Height, width and length, etc.
Surface Treatment: Shot derusting
Coating: Hot-dip zinc treatment, electroplating, painting
The form of installation: steel structure connected by standard fasteners; it can be designed saperately if the special bearing requirements is put forward.
The form of Panel: network board, pattern panel
Have Canopy or not and its mode and material.
The trestle and trestle work designed by our company have been fully considered from the safe operation of our clients and used pattern or gridding as the panel of them.

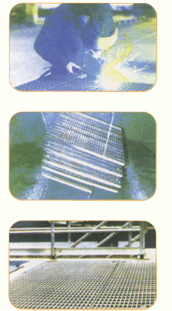

Features of network board:
- no accumulation of water and snow on the panel surface
- surface treatment by hot-dip zinc,and have good weather resistance
- Anti-skid teeths on the surface add to the safety of the workers
- gridding structure makes the surface of trestle work ventilate of top-and-bottom and could not accumulate the quantity of heat, so it can guarantee the pipelins’ safety in high-temperature environment.
List of trestle type |
 |
|
|
|
|
|
