According to 《Design Guidelines for Energy Saving of Oil Depot》and other related criterions' requirements, Light tank should be floating roof tank. Compositional aluminium PJ-NFP is energy saving products. According to the features of medium, the material of floating roof is aluminium, steel and stainless steel.
The Norms/ Standard that design and installation should followe.
Designed norm of vertical cylindrical steel welding tank GB50341-2003
Material of industrial aluminum and aluminum alloy extruded profiles GB.T6892-2000
Designed norm of oil depot GB50074-2002
|
construction features of assembled PJ-NFP
◆ Unique spider web-like hexagonal structure
Assembled PJ-NFP uses unique spider web-like hexagonal structure, and its structural strength is higher and the stability is better than the troditional floading roof when with the same gross mass of material.
◆ Distribution of many small floats, increasing the reliability of operation.
A good number of floats, and distribute uniformly on the floating roof, avoiling the whole floating roof tilting and chucking, because of the leaking of individul float, enhancing the reliability of floating roof.
Using small size float to make the distance between float and panel is narrow, the bottom of frame is under the liquid level, so the frame partitions liquid surface, making the liquid level form many small gas-chambers. During operating, small gas-chambers have better damping effect to the liquid surface fluctuations , absorbing impact to ensure smooth operation.
◆ contagious distribution of outer ring floats, ensuring reliable and steady in sealing operation.
Compositional floating roof uses unique float layout, which many floats are uniformly set near the outer ring and surrounding of selaing tie to make sealing tie force uniformly. The function overcomes the friction produced between sealing tie and wall of tank when operating. At the same time, it also enhances structural strength near the sealing place to guaranteethe safety of operation of sealing tie of floating roof and donot appear chuck phenomenon.
◆Adopting special aluminum alloy pipes as pontoons.
Compositional floating roof uses special aluminum alloy pipes, which have no longitudinal weld joint, reducing the possibility of leakage.
◆saving energy, reducing consumption.
The effect of energy saving is good. The rate of consumption reduce reaches 98%. The design of floating roof ensures the samllest space of oil and gas, reducing effectivelyof the volatile amount of medium. The rate of consumption reduce reaches 98%. Safe use and pollution reduction.
◆High utilization ratio of storage tank.
Because of the small space of oil and gas,which is usually lower than 90% , making its thickness only 300mm, enhancing the tank space and improving storage utilization of tank.
◆ Simple and quick installation, low maintenance cost.
Installation of floating roof is connected by blots, and no need of welding.
Realizing mold and standardized of parts’ production, interchangeability is good.
|
 |
| |
|
|
Type of PJ-NFP
Serial number |
type |
Contour Size(mm) |
Weight(kg) |
Remark |
1 |
ZLFΦ46/30000 |
Φ46000 |
14500 |
|
2 |
ZLFΦ40/20000 |
Φ40000 |
11070 |
|
3 |
ZLFΦ30/10000 |
Φ30000 |
4400 |
|
4 |
ZLFΦ21/5000 |
Φ21000 |
2346 |
|
5 |
ZLFΦ17/3000 |
Φ17000 |
1613 |
|
6 |
ZLFΦ14.5/2000 |
Φ14500 |
1216 |
|
7 |
ZLFΦ11/1000 |
Φ11000 |
839 |
|
8 |
ZLFΦ9.5/700 |
Φ9500 |
679 |
|
9 |
ZLFΦ8/500 |
Φ8000 |
489 |
|
10 |
ZLFΦ6/300 |
Φ6000 |
428 |
|
|
Fuel saving quantity and list of economic benefit of floating roof
Serial number |
specification |
fuel saving qutity per year(ton) |
converted into RMB (ten thoesand yuan) |
1 |
Φ6m/300 |
20.60 |
5.15 |
2 |
Φ8m/500 |
46.28 |
11.57 |
3 |
Φ9m/700 |
62.26 |
15.57 |
4 |
Φ11m/1000 |
87.50 |
21.88 |
5 |
Φ14.5m/2000 |
152.04 |
38.10 |
6 |
Φ17m/3000 |
216.36 |
54.09 |
7 |
Φ21m/5000 |
318.89 |
79.72 |
8 |
Φ30m/10000 |
650.80 |
162.70 |
9 |
Φ40m/20000 |
1156.99 |
289.25 |
10 |
Φ46m/30000 |
1530.12 |
382.53 |
Calculated by authority departments: the diameter of one 1000 Cubic meter PJ-NFP is 12m, 50 times of oil turnround per year. The calculated temperature is 28 oC .
- Large respiratory loss is 79.22 T/Y.
- Small respiratory loss is 72.9KG/D( quiescence volatilization of nature ). The loss of 220 days in one year is 16.04T/Y. the total loss is 95.26T/Y. After installing the floating roof of zhang, calculating in the same situation, the loss of oil is 7.76T/Y, that means it can save gasoline 87.5T/Y, almost 218,800 yuan.(calculated by 2500yuan/t) .
Remark:
The data above calculated by the the physical indicators of gasoline
the price of gasoline calculates by 2500Y/T.
the time of turnround of input and output oil per year is 50times( calculating the average of international standards) |
Main parts:
Float
Skeleton
Anti-transfer framework
Ventilation valve
Outrigger/Adjustable outrigger
Man hole |
|
Float
It uses aluminum alloy plate. Seamless aluminum tube is made to floating barrel to ensure floating barrel leakage and design buoyancyis as 2 times weight as the total weight of floating roof.
Skeleton:
Standardized aluminum alloy skeleton, the design of margin plank ensures the position immerging in the stock solution≥100mm.
Anti-rotation mechanism
It is used to stainless steel rope which is vertical tension, making floating roof keep in the center position. Anti-rotation device is installed on the egde of floating roof, increasing rotary moment and preventting rotating and tilting of floating roof effectively.
Ventilation valve
Ventilation valve designed in accordance with the API standard of H.6.2---- Damping Type of ventilation valve ensures the discharge area is no less than 0.8sqm and switches automatically according to the pressure of tank.
Outrigger/Adjustable outrigger
Outrigger is fixed for the convenient of maintaining and installing. Outrigger uses aluminum alloy, distributes uniformly, and its carrying capacity is greater than critical pressure of floating roof. It could regulate height freely according to the structure of the tank bottom, and it is convenient for installation and maintained.
Man hole
It’s designed to open easily and man hole sealed by weatherstrip that fulfills with condition of medium, and the bottom fram immerses into surface liquid level no less than 100mm, good sealing effect.

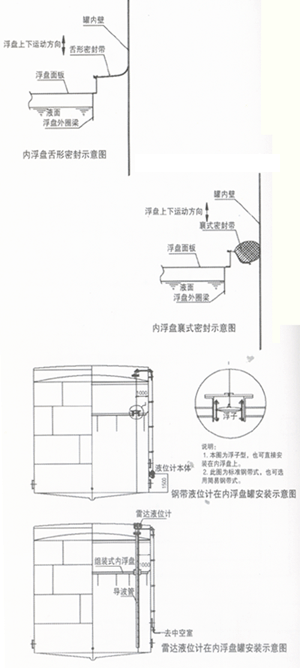

Sealing tape
Choose the sealing tape according to the medium of stored . The types of conventional sealing are tongue-like and cystic-like type.
The hole for measuring oil
Design and manufacture according to request from tank measurer. The position that the bottom immerses into the liquid surface level is no less than 100mm, and the top is sealed by flexible rubber membrane.
Panel
The panel uses 0.5mm thice rust-proof aluminum alloy panel. The lap joint is sealing by weatherstrip.
Antistatic wire
The antistatic wire uses Φ3mm of stainless steel wire rope to ensure the grouding resistance is not more than 10 Ω. |
|
|
|
