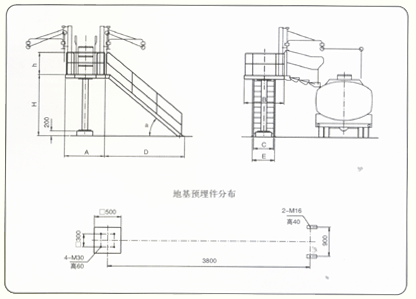

Single column truck trestle work
ZQD1 single column trestle work is used to the side loading and unloading of truck and tanker of diferent tonnage and type.
Main Parameters:
Typical size below table;
Material: Carbon Steel
Panel: network board,pattern pane, alternative;
Anti-corrosion treatment： Hot-dip zinc， Electroplating， painting, alternative;
It could install 1 to 4 loading and unloading arms, 1 to 3 folding ladders.
Its design could include the canopy and the form is alternative.
|
|
size |
A |
B |
C |
D |
E |
H |
h |
a |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
° |
ZQD1 |
1600 |
1600 |
800 |
3200 |
890 |
2100 |
800-1000 |
40 |
★Typical size above is offered for reference ,additional design is feasible if our customers have other requests. |

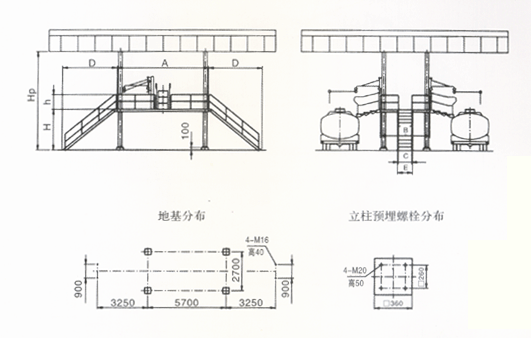

Bilateral working truck trestle
ZQS3 truck trestle uses the bilateral loading and unloading work of diferent tonnage and type of truck.
Main Parameters:
Typical size below table;
Material: Carbon Steel
Panel: network board, pattern panel, alternative;
Anti-corrosion treatment： Hot-dip zinc， Electroplating， painting, alternative;
It may chose multi- units, each unit installs 2 crane tubes and 2 folding ladders.
The form of canopy:net fram structure, Light steel structure , alternative.
|
|
size |
A |
B |
C |
D |
E |
H |
h |
HP |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
ZQS3 |
6000 |
3000 |
800 |
3200 |
890 |
2500 |
800-1000 |
6000 |
★Typical size above is offered for reference ,additional design is feasible if our customers have other requests. |

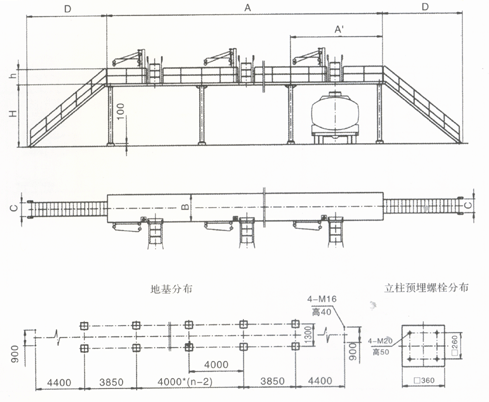

Through- type truck trestle
ZQt1truck trestle uses the throuht-type loading and unloading work of diferent tonnage and type of truck.
Main Parameters:
Typical size showed in the following table;
Material: Carbon Steel
Panel: network board,pattern board,alternative;
Anti-corrosion treatment： Hot-dip zinc， Electroplating， painting, alternative;
May choice several parking spaces
The design could include the canopy and the form is alternative.
Model |
size |
Units |
A |
A′ |
B |
C |
D |
H |
h |
n |
Mm |
mm |
mm |
mm |
mm |
mm |
mm |
Unit |
ZQT1 |
400×n |
4000 |
1600 |
800 |
4400 |
3500 |
800-1000 |
According to the median Crane |
★Typical size above is offered for reference ,additional design is feasible if our customers have other requests. |

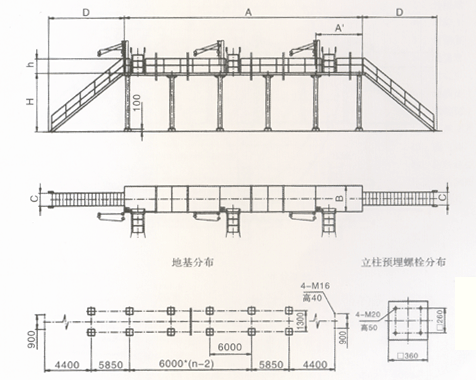

Unilateral working train trestle
ZHD1 single column trestle is used to the unilateral work of loading and unloading of different tonnage and type of train and tanker.
Main Parameters:
Typical sizes are showed in the table below
Material: Carbon Steel
Panel: network board, pattern panel花紋板, alternative;
Anti-corrosion treatment： hot-dip zinc， electroplating，painting, alternative;
It could be designed according to the need of parking spaces(General length);
The design could include the canopy and the form is alternative.
Typical size above is offered for reference ,additional design is feasible if our customers have other requests.
Model |
size |
Units |
A |
A′ |
B |
C |
D |
H |
h |
n |
Mm |
mm |
mm |
mm |
mm |
mm |
mm |
Unit |
ZHD1 |
6000×n |
6000 |
1600 |
800 |
4400 |
3500 |
800-1000 |
According to user requirement
|
|

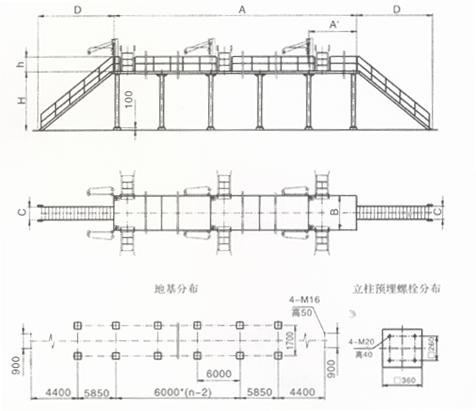

Bilateral working train trestle
ZHS1 single column trestle is used to the unilateral work of loading and unloading of different tonnage and type of train and tanker.
Main Parameters:
Typical size in table below;
Material: Carbon Steel
Panel: network board,pattern board, (alternative);
Anti-corrosion treatment： Hot-dip zinc， Electroplating， Painting, (alternative);
Car port(total length), could be designed according to the needs;
The design could include the canopy and the form is alternative.
typical size above is offered for reference
It could be designed according to the need of clients.
Foundation Distribution
Column Embedded Bolts Distribution
|
|
size |
A |
Ai |
B |
C |
D |
H |
h |
n |
mm |
mm |
mm |
mm |
mm |
mm |
mm |
Unit |
ZHS1 |
6000*n |
6000 |
2000 |
800 |
4400 |
3500 |
800-1000 |
According to user requirements
|
★Typical size above is offered for reference ,additional design is feasible if our customers have other requests. |
|
|
|
